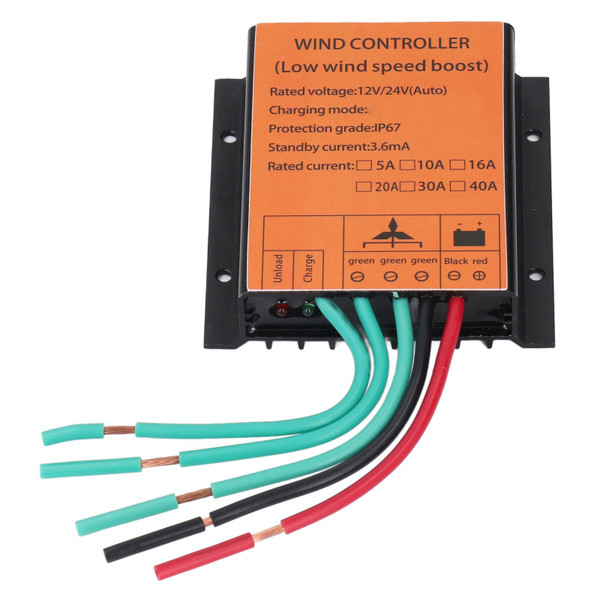

Product Overview
Brand: Yunseity
Color: black
Features:
- Heightened Heat Dissipation Wind Tunnel: This wind turbine controller adopts the heightened heat dissipation wind tunnel design, which can effectively solve the heat dissipation problem of the controller in the case of high current charging, the working condition is and stable, and the service life is increased.
- MPPT Control Method: This wind generator controller adopts the MPPT (high power point tracking) control method, which ensures that the wind turbine can the battery at low wind speed and low rotational speed, and also improves the wind turbine's power generation utilisation rate by 90% under the same conditions.
- Automatic Matching: This mini wind turbine generator controller automatically matches 12V or 24V batteries, controlling voltage and current limits while charging to ensure optimal charging.
- Multiple Guards: This wind turbine generator regulator is guarded against overcharging and discharging of batteries, reverse connection, overload, lighting, current control, automatic braking of the wind turbine or manual braking.
- Wide Application: This MPPT wind turbine controller has a wide range of applications and can be used for industrial fan control, building ventilation systems, energy recovery and more.
Details: Spec: Item Type: Wind Generator Controller Material: Aluminium Alloy Charging Mode: MPPT Proof Level: IP67 Standby Current: 3.6mA Display Method: Diode Indicator Rated Current: 40A Discharge Method: PWM Electrodeless Noiseless Discharge Guard Method: Battery Overcharge, Overload, Wind Limiting, Automatic Brake Performance: MPPT Power Point Tracking Mode Charging How to Use: 1. Connect the thick red wire from the controller to the positive terminal of the battery. 2. Connect the thick black wire from the controller to the negative terminal of the battery. 3. Connect the three green wires from the controller to the three output wires of the wind turbine. Package List: 1 x Wind Generator Controller
