Product Overview
Brand: Nilight
Color: Blue
Features:

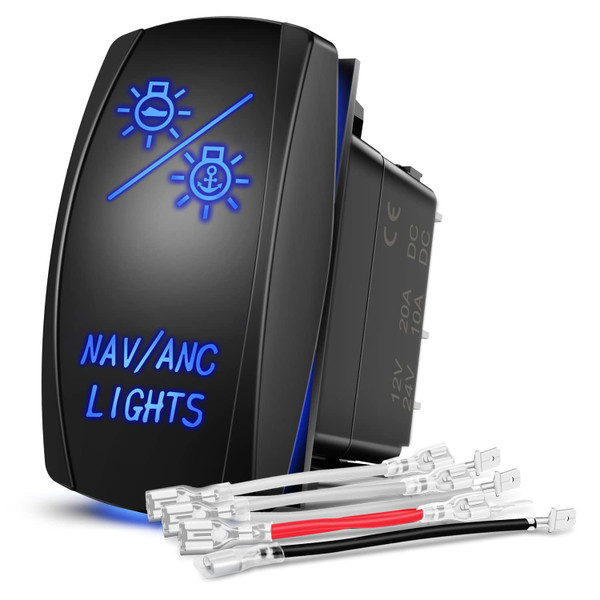

- Easy to install and use: 7 pin on off on rocker switch with DPDT design (double pole double Throw), rated at 20AMP/12VDC and 10AMP/24VDC. Can be installed or replaced on the original rocker switch panels. It is easy and simple to set up. Can control 2 loads.
- Wide Applications: Mainly used to controlling the navigation lights and anchor lights. 3 positions (ON -OFF-ON). Universal fit for Marine boats, Yachts, cars, RVs, SUVs, ATVs, UTVs, Cans, Buses, Trailers, rerunners, Campers, Caravans etc;
- Sturdy and durable: made of high-quality plastic and well-conductive pins; ensure long lasting durability, highly optimized for general use and will give you a pleasant experience.
- Multiple Security Protection: Output circuit protection, overload protection, reverse polarity protection. Built in two premium LEDs, safer and more convenient to use. Note: the upper and lower LED of switch will only light up when the switch is turned to ON position
- Package Includes: A 7 PIN switch, jumper wires set and a wiring diagram.
Warranty: 2 Year Warranty
Details: Switch Terminal: 7 PIN;Material: Superior ABS+PC; DPDT design, this on off on switch can control 2 loads; Built-in 2 LEDs; Product Size: 1.9"(48.3mm) x 1.04"(26.3mm). Mounting Hole Size: 1.43"(37mm) x 0.84"(21.3mm). Fits most cars, SUVs, ATVs, UTVs, 4X4, motorcycles, trucks, Jeep Wranglers, boats, yachts, and other off-road vehicles. Mainly used together with wiring harness to control Winch, Pump, Horn, Reclining Media Room Seats, Auto Bilge Pump, or led work lights, headlights, taillights, etc. The switch is very flexible for turning on or off. It can stand up to 10,000 times pressing under normal use.Voltage: Rated at 12V 20A and 24V 10A DC. This switch is simple to install, product comes with a wiring diagram which make it easy to wire the jumper wires within several seconds. High quality 14 gauge jumper wires, the Tin-plated copper terminals on the wire is of good stability, wear resistance, corrosion resistance. Made of ABS and PC of premium quality, the switch is impact and heat resistant. DPDT design, this On Off On switch can control 2 loads. The 7 pin rocker switch can be installed on Nilight rocker switch holder housing for better using effect. It can also be replaced to any defective 7 PIN switches. Convenient and cost-effective. About Nilight With over 7 years of experience in the rocker switch field, Nilight produces products that are long-lasting, powerful, and simple to use. Nilight produces quality products with cost-effective offers. With rich industry experience and advanced technology, Nilight combines leading research and knowledge to build innovative switches that are at the forefront of design, intelligence, and power.
UPC: 840323901888
