Product Overview
Brand: NEWHOW
Features:

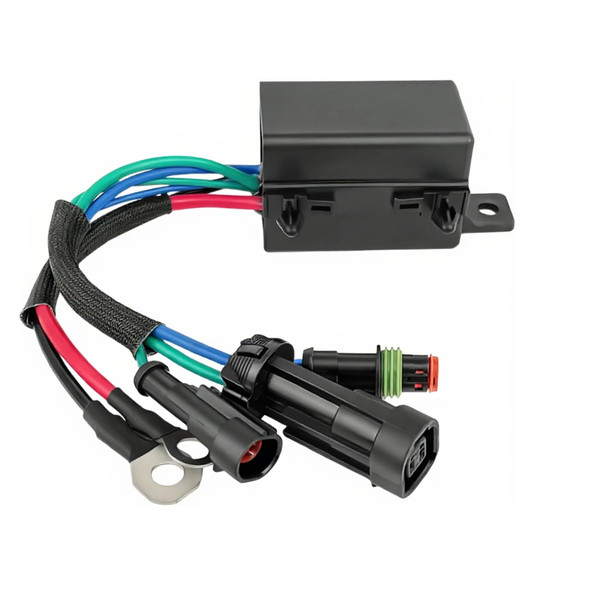

- 12V 6-Wire Tilt Trim Relay — OMC OEM 586767 / 0586767, Replaces ARCO R767 Direct aftermarket electromagnetic tilt-trim relay switch for OMC/BRP outboards. This is the OMC/BRP original 586767 (0586767), not a self-built aftermarket number — it replaces 586767, 0586767, 0586797 and crosses ARCO R767, Arrowhead TRM6001, 240-22156, WSM 343-100. 12V DC, ~40A continuous, SPDT dual-NO silver contacts, 6-wire: Plug1 (large green+large blue), Plug2 (small green+small blue), red B+ eyelet, black B− eyelet, ABS shell + metal bracket. Match old stamp 586767 and confirm 6-wire dual-plug before order. Not a 7-wire solenoid, not a single-plug trim motor, not Mercury/Yamaha relay.
- For Johnson / Evinrude E-TEC Gen1 15-300HP (2004-2012) Engineered for E-TEC E15/E25/E30/E40D/E50D/E60D/E75D/E90D/E115/E130/E150/E175/E200/E225/E250/E300 (AA/AB/AF/AG/AH) and equivalent Johnson-badge 15-300HP with electric tilt trim.
- Fixes Trim Dead, One-Way Only, Click-No-Actuate Resolves relay faults: trim won't go up or down, only raises but won't lower (one contact welded/open), relay chatters but motor silent, or helm switch works but no current reaches trim motor. Coil opens or contacts burn from repeated stall current. New relay restores both directions. Test old: 12V to coil should click; continuity B+↔motor lead switches with coil energized. No click = dead coil.
- Screw-Mount to Bracket, Match 6-Wire Color Pairs Exactly Disconnect negative battery first, locate relay on engine bracket/electrical tray, photo old wiring, remove 2× mount screws, unplug 2 connectors, undo red/black eyelets. Mount new relay, torque screws to 35 in-lb, reconnect large green/blue to Plug1, small green/blue to Plug2, red to B+, black to B− — color-for-color, do NOT swap large/small pairs or trim reverses. Critical: 6-wire layout must match old exactly; if old unit is 7-wire or single large solenoid plug, this SKU will not fit.
- 586767 6-Wire Relay ≠ 7-Wire G2 / Single-Plug Solenoid — Confirm Dual Plug + Gen1 Critical: This is the 6-wire dual-plug electromagnetic relay (2 control plugs + 2 battery eyelets) for E-TEC Gen1 AA-AG 2004-2012. E-TEC G2 (2014+) uses a different larger relay assembly — not interchangeable. Photo old part: 586767 + 6 wires (2 plugs + 2 eyelets) + black ABS + metal tab = exact fit. 7 wires or 1 big plug = wrong generation.
