Product Overview
Brand: AiLi
Color: Black
Features:

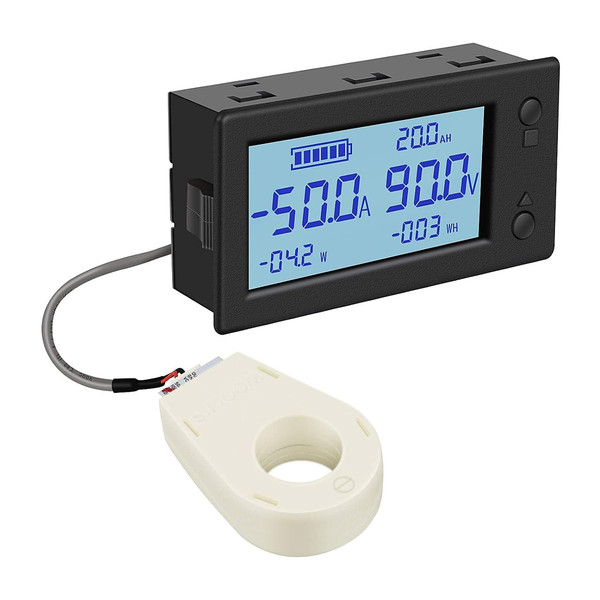

- NO SHUNT NEEDED - NONDESTRUCTIVE INSTALL IN MINUTES Traditional battery monitors make you cut and re-terminate heavy cables to fit a shunt. This one does not require a shunt. It ships with a through-hole Hall effect current transformer: simply pass your existing cable through the sensor and you are done. The sensor can sit on the positive or negative side of the power source with no current direction limitation, so charge and discharge current are both measured.
- READ YOUR BATTERY BANK LIKE A FUEL GAUGE The STN full-view LCD shows state of charge (%), remaining capacity (Ah), charge and discharge current (A), voltage (V), power (W) and energy (Wh / kWh), plus a charging status indicator - so you always know exactly how much power you have left instead of guessing.
- 0-300V / 200A RANGE FOR 12V, 24V AND 48V DC SYSTEMS Voltage range 0-300V DC and current range -200.0A to +200.0A cover RV house banks, off-grid solar arrays and higher-voltage DC setups, with 0.1V / 0.1A / 0.1Ah / 0.1W resolution for precise readings. Power supply 5-90V DC, self-powered from the measured system.
- ELECTRICALLY ISOLATED AND REVERSE POLARITY PROTECTED The current sensor is electrically isolated from the high voltage power source, which eliminates risk to delicate monitoring equipment and minimizes safety concerns. Built-in reverse polarity protection adds a second layer of safety for DIY installs.
- BUILT FOR RV, SOLAR, MARINE AND GOLF CART SYSTEMS Ideal for RV, camper, caravan and motorhome house battery banks, off-grid solar power systems, boats and marine, golf carts and van life. Works with lead acid, AGM, gel and lithium LiFePO4 banks. Package includes 1 x battery monitor, 1 x current transformer, 1 x 2 m cable and 1 x English operation manual.
Details: AiLi 200A Hall Effect Battery Monitor - Know Exactly How Much Power You Have Left Stop guessing how much battery you have left. The AiLi 200A Hall Effect Battery Monitor combines a DC voltmeter, an ammeter and a battery fuel gauge in one compact panel-mount unit. It displays state of charge (%), remaining capacity (Ah), charge and discharge current (A), voltage (V), power (W) and energy (Wh / kWh) on a bright STN full-view LCD, so you always know your battery status at a glance. NO SHUNT NEEDED - NONDESTRUCTIVE INSTALLATION Traditional battery monitors force you to cut and re-terminate heavy cables to fit a shunt. The AiLi does not require a shunt. It comes with a through-hole Hall effect current transformer: simply pass your existing cable through the sensor hole and the installation is finished. The sensor can be placed on the positive or negative side of the power source with no current direction limitation, so it measures both charge and discharge current. ELECTRICALLY ISOLATED FOR SAFE, ACCURATE MONITORING The current sensor is electrically isolated from the high voltage power source, which eliminates risk to delicate monitoring equipment and minimizes safety concerns. Reverse polarity protection is built in, and the display is self-powered from the measured system (5-90V DC) - no separate power supply and no extra wiring required. TECHNICAL SPECIFICATION Power Supply: 5-90V DC Voltage Range: 0-300V Current Range: -200.0A to +200.0A Capacity Range: 0-999Ah Energy Range: 0-999kWh Power Range: 0-999kW Resolution: 0.1V / 0.1A / 0.1Ah / 0.1W / 1Wh Display Type: STN full-view LCD Charging status indicator IDEAL FOR RV, camper, caravan and motorhome battery banks Off-grid solar power systems and solar battery banks Boats, marine and sailboat 12V / 24V / 48V systems Golf carts, van life and dry camping setups Lead acid, AGM, gel and lithium LiFePO4 batteries WHAT'S IN THE BOX 1 x Battery Monitor 1 x Through-Hole Current Transformer 1 x 2 m Cable 1 x English Operation Manual
